Complex, but easy
Complex, but easy.

Digital Performer 10 is out! and one of the big features is VCA faders. Other DAWs have had them for a while, but I love DP and it’s now time to talk about VCA Faders in more detail.

What are VCA faders and why do they matter? Allow me a few minutes to explain.

NOTE: DAW Chart has been updated for DP10! Look at those points soar!

If you have any questions or comments, please comment below! I read every comment and respond to most. No registration is necessary to comment, so don’t be shy.

Contents

Video

Video form, yet again.

The Concepts

There are 4 places where VCA faders win out over other options. Both of these advantages overlap each other for a semi-tertiary benefit.

Automation

Layers of control

Imagine you have a song. (I know that’s hard for some of you). You’ve automated it to perfection… almost.

The synth pads in the chorus are a bit loud, but only in sections. You want to automate a whole section of the mix, on top of the existing faders. Excellent! VCA Faders to the rescue.

Select the tracks, Project->Add Tracks->VCA Track And Group. Now you have a shiny new VCA fader that allows you to adjust the connect faders, and automate them as you will. VCA tracks do not process audio, they only multiply the current child fader value by the VCA fader value.

Limits

VCAs vs. Aux Groups

Regarding automation, VCAs in Digital Performer have a pro/con that’s worth considering.

Imagine two tracks with audio peaking at -6dB FS. One is controlled by a chain of VCAs. One is output to a chain of Aux groups.

If you turn the VCA up, the child track will never go above +6dB. It doesn’t matter how many VCAs are stacked and trying to control it. Thusly the child tracks output would never clip in this scenario, since it can not go above +6dB boost no matter what the VCA does.

The aux group can stack gain upon gain until the output is clipping.

It should be fairly obvious how this can be a great thing, or a terrible thing, but it’s a thing. Consider it and use it to your benefit.

Sends

VCA Fader vs. Aux Group
VCA Fader vs. Aux Group (click for larger image)

If you read the Automation section then you surely thought, “Hey dude, I can just send all my tracks to an Aux Group and automate that!”

You’re right, you can.

Unless you have any aux sends, then you’re in trouble.

Look at the graph above. With an Aux group, what happens to your send when you turn down your Aux group?

Your reverb send is still making noise!

With a VCA, it’s identical to moving the faders themselves. Turn the VCA fader down, and your sends also come down proportionally.

Fantastic!

Hierarchy

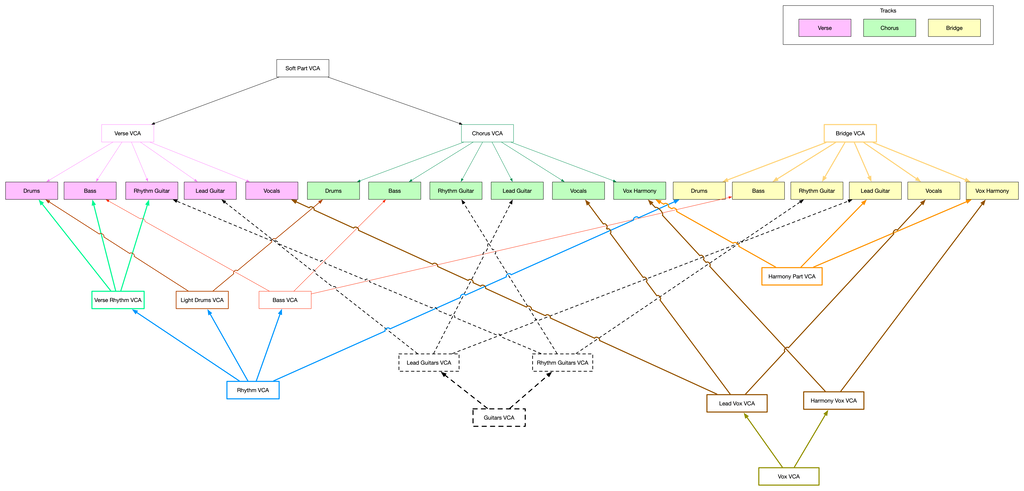

VCA Mixing
VCA Mixing (click for larger image)

That graph above is going to seem overwhelming at first for some people. Let me lay out a few things here:

  • The center coloured boxes represent tracks with audio/midi data on them.
  • Every other box is a VCA fader

Now look at the VCAs and see what they control. Some tracks are controlled by multiple VCAs. Some VCAs are nested. Setting up your project like this with groups would be a nightmare.

VCAs make it easy, and they also help you ‘conceptualize’ the mixing process. As you start tracing the various lines it’s possible that you begin to think of what this theoretical song sounds like. Those conceptual units map directly to faders, and those faders don’t mess up your sends or your automation.

You can mix by instrument, section, part of the track, conceptual unit or whatever you can think of! Then you can chain those ideas and use automation and sends without pulling your hair out.

You can’t do that with aux groups or fader groups and stay sane.

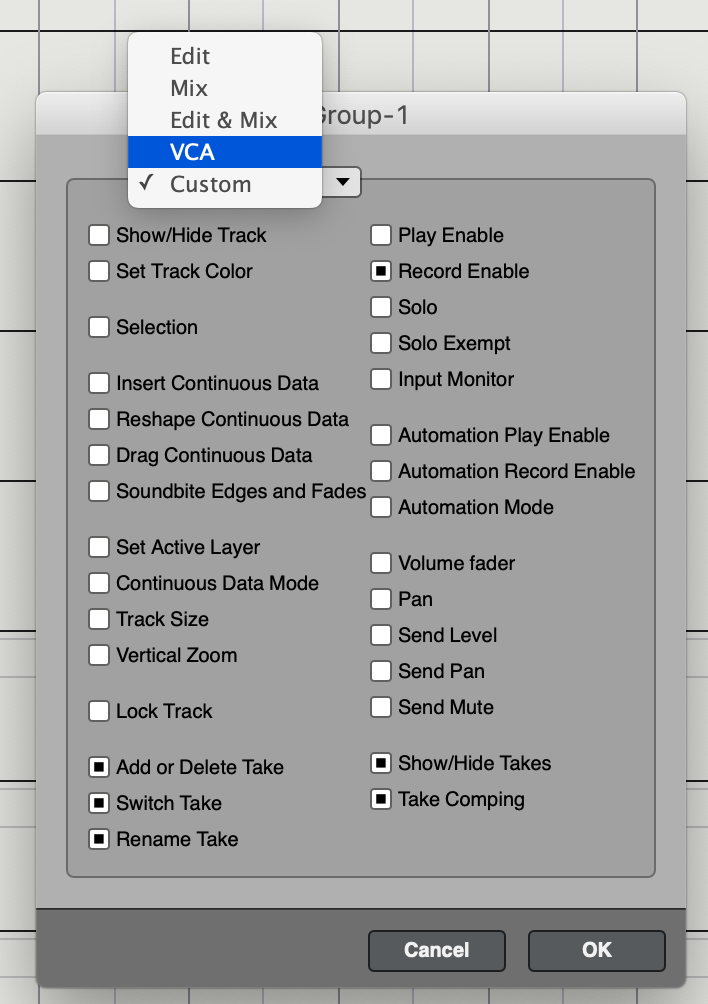

Fader Groups

Fader Groups or VCA?
Fader Groups or VCA? (click for larger image)

By “Fader Group” I mean when you link multiple faders together so they act as a cohesive unit.

VCA’s win here.

  • Most DAWs don’t work correctly when automating groups (if they work at all!). One of two things will go wrong:
    • You lose the ability to individually automate any of the faders that are grouped, when one moves they all move.
    • Automating a fader doesn’t move the rest of the group, but moving the fader yourself does.
  • Some DAWs don’t maintain relationships between faders when one of them reaches a max/min limit in the mixer.
    • Imagine a track at 0dB and another at +6dB with a max mixer value of +6dB. If you turn the 0dB fader to +6dB, the two faders are now at the same level. If you bring them down you would want them to maintain the 6dB difference, but due to the maxing out they will be the same level. This does not happen with VCAs.
  • Nested Fader groups are fairly rare in the DAW world.
  • Groups are bidirectional! If one moves, they all move. So your automation gets muddled and conflated and other fancy words that mean “screwed up”.

Conclusion

VCAs are awesome. If you are a regular reader then you know how much I love them. DP 10 has them now, and I’m incredibly happy about that.

Hopefully this article has helped you share my excitement, and my love of VCA Fader Groups.
